Overview

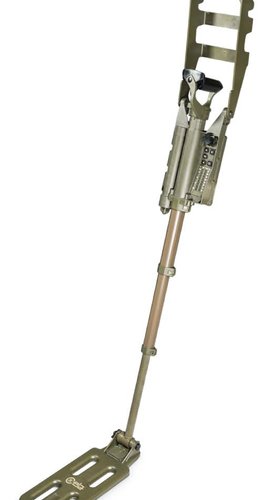

The CEIA CWD is a lightweight and portable device featuring the capability of detecting command wires of any diameter and type with high sensitivity, in conductive and non-conductive soils, including laterite and magnetite. The Wire Detector comprises a search head, a control unit, a telescopic pole and an elbow support all jointed together in a one-piece foldable design that allows the CWD to be operational in a very short time and easily carried everywhere.
Detection is independent of wire orientation with respect to the Search Head. In addition, the CWD does not require any manual calibration: optimum sensitivity is ensured over all types of terrain due to CEIA's exclusive Automatic Soil Compensation System.
Specifications
| Sensitive adjustment | 1 |
| Ground balance | 1 |
| Battery | 3 x 1.2V Ni-MH C cells - HR14 |
| Low battery alert | 1 |
| Rechargeable | 1 |
| Operating time | 8 hours |
| Battery charger provided | 1 |
| Battery charger information | integrated battery charger |
| Length | 1300 mm |
| Weight | 2.25 kg |
| Search head size | 350 mm |
| Shape | rectangular 350 mm x 140 mm |
| Transport case provided | 1 |
| Transport case information | optional |
| Transport case weight | 0.6 kg |
| Transport case weight info | soft carry bag |
| Factory support | worldwide support |
| Warranty | 1 year, possible extension |
| Humidity (limitations) | no limitation |
| Water resistant | 1 |
| Temperature limitations | STORAGE TEMPERATURE -55°C to +85°C; OPERATING TEMPERATURE -46°C to +70°C |
