Overview
The FEREX is a vertical gradient fluxgate magnetometer that measures the deformation of the earth's magnetic field evoked by ferromagnetic objects. Magnetometers are suitable for
the detection of ferromagnetic metals like iron, steel or nickel. Normally the detection Depth of magnetometers is larger compared to active EMI detectors but it varies and depends on
the object's mass and its magnetic properties.
Detection of ferrous material/UXO e.g. bombs, shells, projectiles, sub-ammunitions
Magnetometer using tension band technology
In-built filters for search under power lines
Special mode for search along fences, pipelines and railway tracks
Special mode for filtering small objects
Precise handling, light weight
Low noise for high detection sensitivity
Compact detector in one piece design
Specifications
| Transmission frequency | 0.00 kHz |
| Audio output | yes |
| Visual display | yes |
| Depth indication | down to 6m |
| Sensitive adjustment | 1 |
| Ground balance | 1 |
| Ground balance information | yes |
| Battery | 4 x 1.5V Batteries (LR20) or 4 x 1.2V NiMH |
| Low battery alert | 1 |
| Rechargeable | 1 |
| Operating time | 80.00 hours |
| Length | 1250.00 mm |
| Weight | 3.30 kg |
| Search head size | 550.00 mm |
| Shape | one-piece design with 550mm sensor spacing magnetometer probe |

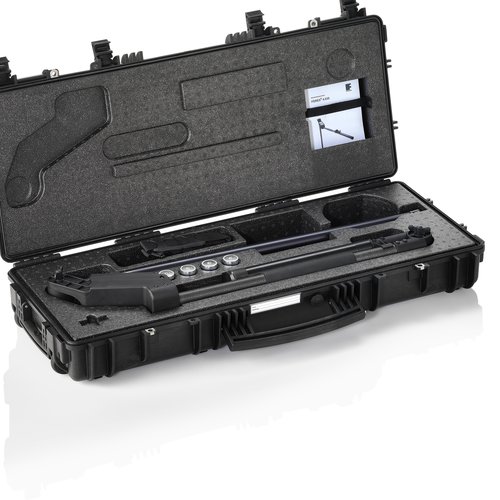

| Transport case provided | 1 |
| Transport case information | rugged case |
| Transport case weight | 7.80 kg |
| Warranty | 2 years |
| Water resistant | 1 |
| Temperature limitations | approved acc. to serveral MilStd 810G and 465G |
| Base price | 0.00 € |
| Reduction for higher quantity | please contact dm.sales@foerstergroup.de for a detailed quotation |
| Possible to rent | 1 |
| Price for training | please contact dm.sales@foerstergroup.de for a detailed quotation |
| Additional equipment | Borehole detection Underwater detection Extension cable up to 100m Pulling rope Ballast weight Headphone |
